Building Prince’s Purple Rain Motorcycle Replica (Honda CM400T Custom) in japan- No. 5

投稿日:2026年3月2日 更新日:



I’m building a motorcycles for Prince “Purple Rain”(No. 5)

☆Click here for the First article ☆
☆Click here for the completed motorcycle☆

Production is progressing little by little. It looks like it will take some time to complete.

プリンスパープルレイン バイク prince purplerain motorcycle

I sprayed the surfacer on the gas tank and checked the dented part.
After spraying with black spray and rubbing with a file The part that remains black is dented.

プリンスパープルレイン バイク prince purplerain motorcycle

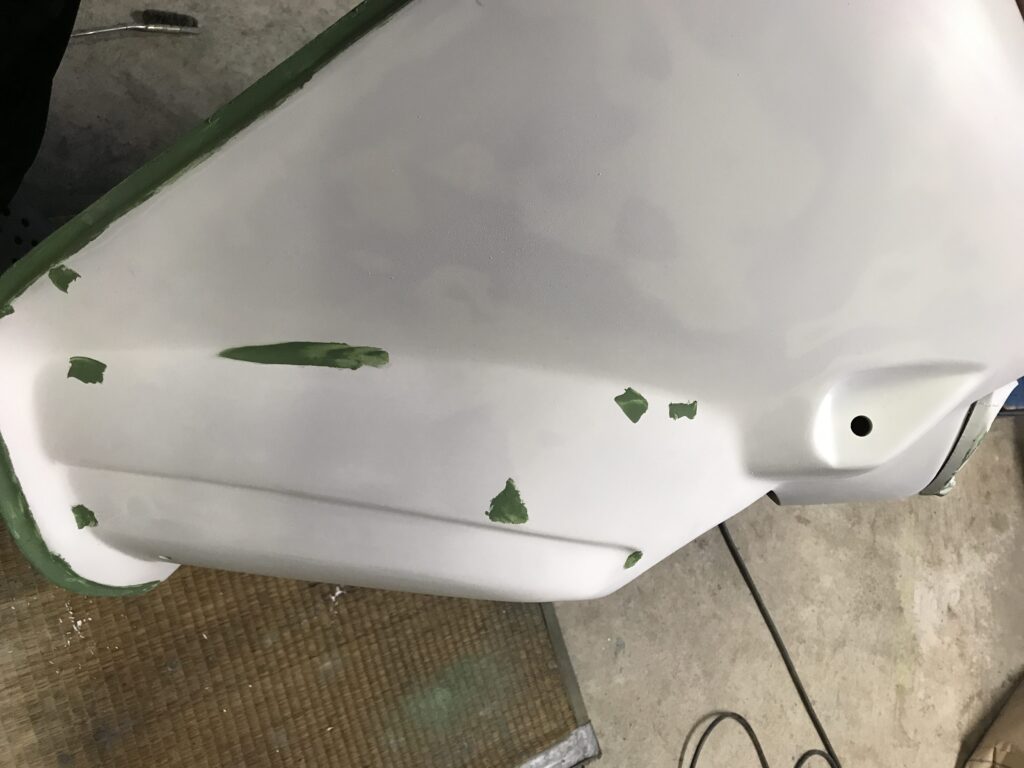

Lightly apply the putty to the areas where the color remains.

プリンスパープルレイン バイク prince purplerain motorcycle

I piled putty and repeated shavings.

プリンスパープルレイン バイク prince purplerain motorcycle

プリンスパープルレイン バイク prince purplerain motorcycle

プリンスパープルレイン バイク prince purplerain motorcycle

I don’t know the cowling material. ABS? PP?

プリンスパープルレイン バイク prince purplerain motorcycle

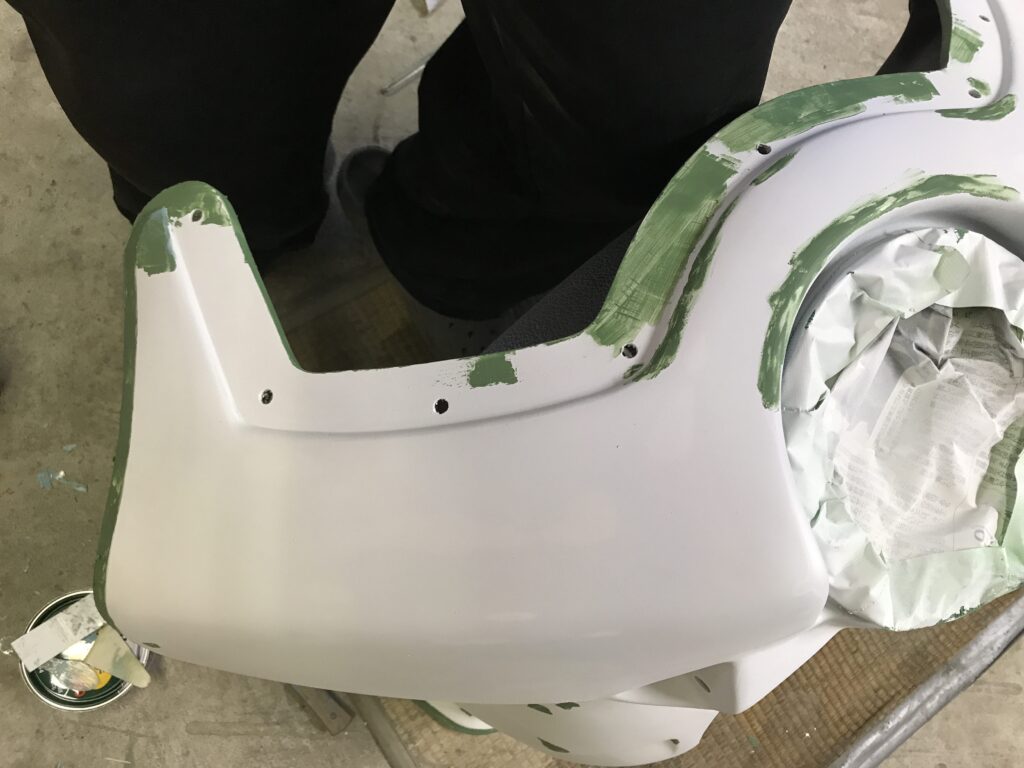

The corners consist of different types of putty. A screw is included for reinforcement.

プリンスパープルレイン バイク prince purplerain motorcycle

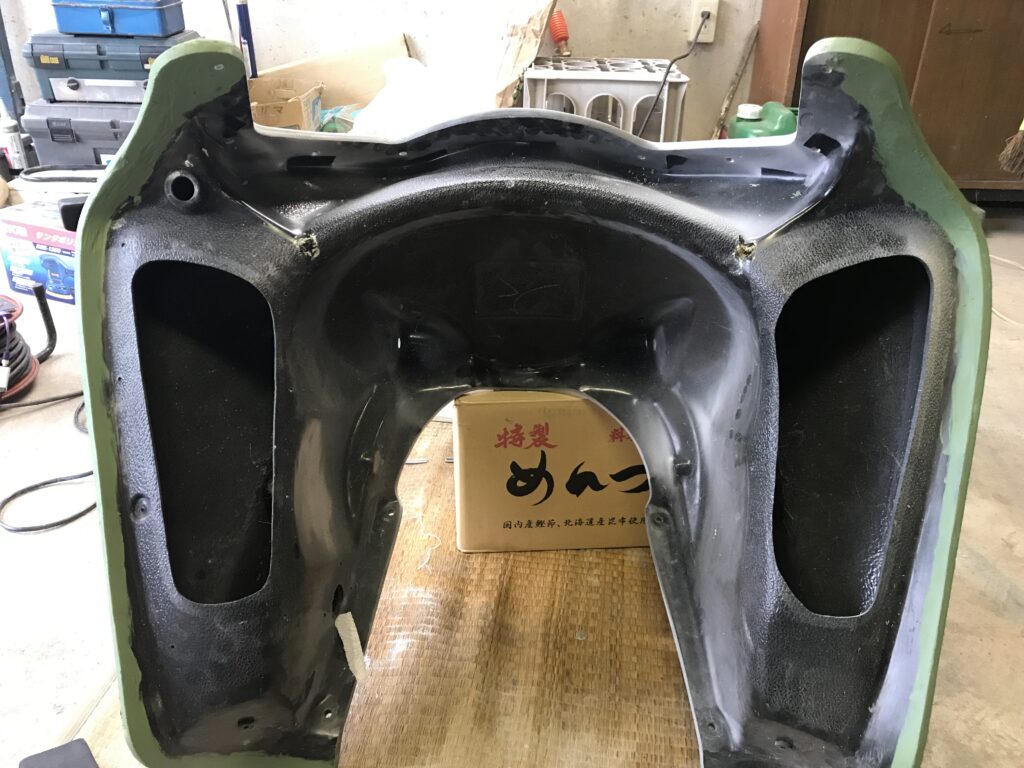

There is a large-capacity accessory case on the back side of the cowl.

プリンスパープルレイン バイク prince purplerain motorcycle

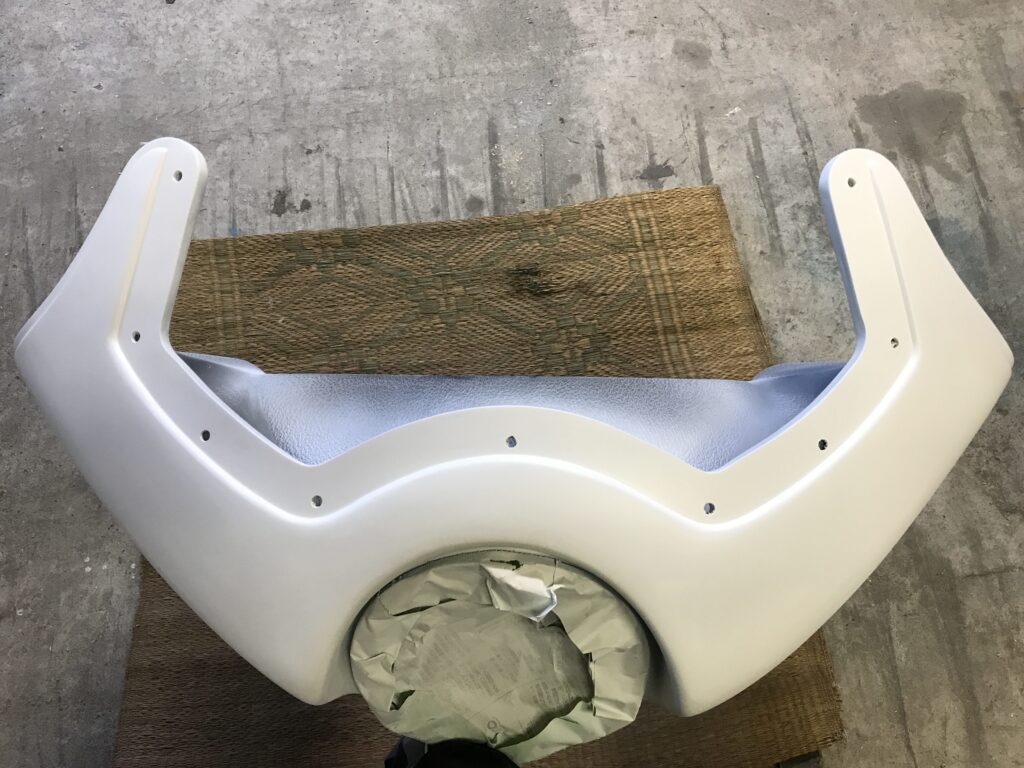

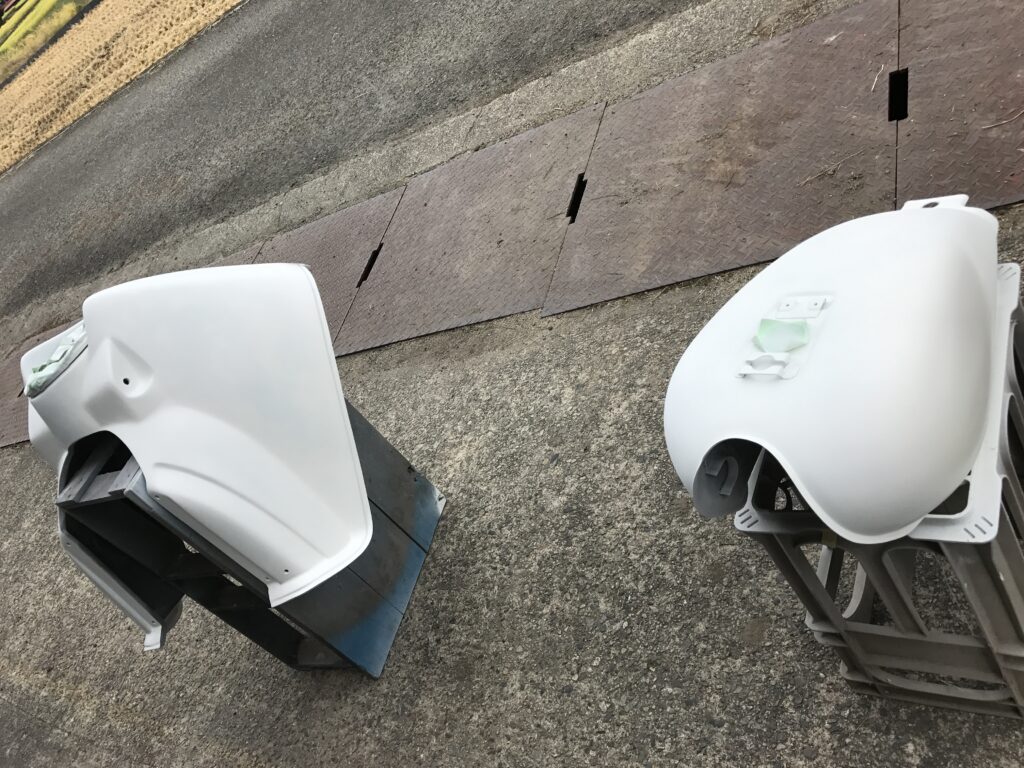

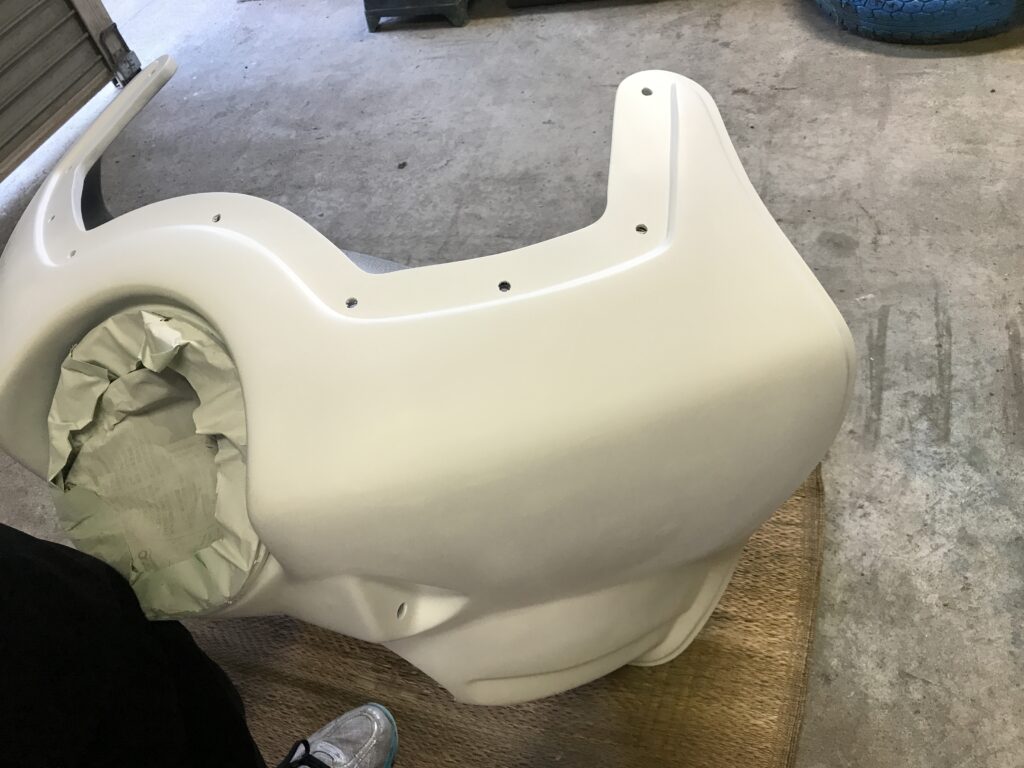

Finally, spray the surfacer again.

プリンスパープルレイン バイク prince purplerain motorcycle

It’s hard to see, but the screws that were put in the corners for reinforcement were raised, so I scraped them off later.

プリンスパープルレイン バイク prince purplerain motorcycle



プリンスパープルレイン バイク prince purplerain motorcycle

As a form, it may have approached “Purple Rain”. I do not know the angle of the corner part of the actual car. If you go to “Paisley Park” in Minneapolis, you can see the actual car, so I’d like to go there someday.

プリンスパープルレイン バイク prince purplerain motorcycle

I painted it red! To put the symbol mark, first paint red. After drying, cut the masking tape in the shape of the symbol mark and paste it.

プリンスパープルレイン バイク prince purplerain motorcycle

プリンスパープルレイン バイク prince purplerain motorcycle

プリンスパープルレイン バイク prince purplerain motorcycle

Next time I will paint the cowling purple. Please stay tuned.
